Anti Climbing Welded Wire Mesh Fence Panels with Security Tops
Framed welded mesh panels are popular in fencing uses available in various mesh patterns ( square mesh or rectangular mesh). High secure 358 mesh is a closely arranged rectangular hole welded mesh extremely difficult to penetrate. Its small mesh aperture is effectively finger proof and anti-climbing. Welded mesh materials can be various: stainless steel, mild steel galv., pvc coated and epoxy coated.
'358' comes from its measurements 3" x 0.5" x 8 gauge which equates to approx. 76.2mm x 12.7mm x 4mm in metric. The firmly welded structure is extremely difficult to attack using conventional hand tools.
Weld Mesh High Security Fence Systems are supplied with strong and durable surface coatings. Zinc coating, Epoxy, Polyester powder, and Thermoplastic coatings are available finishes options. To further increase the corrosion resistance of the system, fence panels can be made out of heavy galvanized wire, or zinc-alum wire. The design of the high security mesh fence system requires no fabrication work on the site, and it is a complete assembly job, which ensures that factory finish is maintained perfectly.

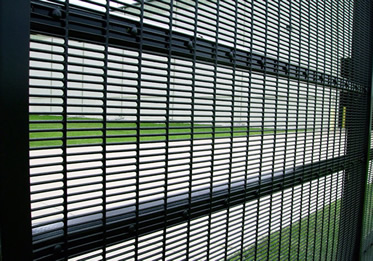

Anti Climbing and Anti Cutting 358 Mesh Panels:
High Security Mesh Fence, Opening 12.7mm x 76.2mm, panel size 2997mmx 2515mm, in section size of 80x80x2.5mm, length 3.8m, black powder coating finish.

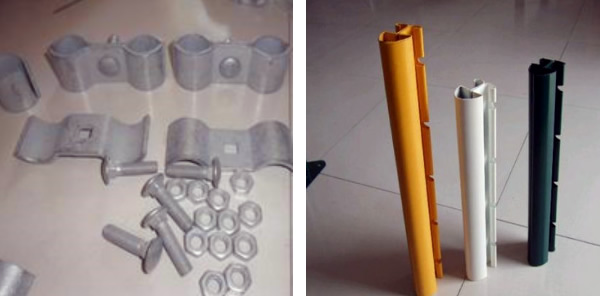

Fence Accessories:
Powder coated steel posts pitch at stipulated intervals, using steel fixing brackets flat bar by bolts and nuts.
Surface Treatment Options
- Fully Hot Dipped Galvanized
- 267 grams/sqm Hot Dipped Galvanized
- 428 grams/sqm Hot Dipped Galvanized
- Polyester Coating
- Electronic Spray Painted Before Galvanized ( 80gram/sqm)
- Stainless steel
Applications
- Bridge anti-climb guarding & guard safety screening;
- Sub-station security fencing;
- Psychiatric hospital security fencing;
- Factory machine guards;
- Walkway security fencing;
- Airport security fencing;
- 358 wire mesh fence gates;
- Shipping port security fencing;
- Water treatment works;
- Gas security window girlles;
- Balustrades security fence;
- Prison mesh fence;
- Other commercal/industrial security fence uses.
Plastic Powder Coated gal. rectangular hole wire mesh security screen panels, with section size 100*100*5 mm, offering maximum anti-finger safety
Specification of Mesh, Panels and Fence Posts for 358 Security System
| MESH | PANELS | POST | ||||
| Wire Diameter | Opening | Height*Width | Section | O/A Length | Total number of fixings | |
| mm | mm | mm | mm | mm | Inters-1 Clamp bar | Comers-2 Clamp bar |
| 4 | 12.7*76.2(3"*1/2") | 2007*2515 | 60*60*2.5 | 2700 | 7 | 14 |
| 4 | 12.7*76.2(3"*1/2") | 2004*2515 | 60*60*2.5 | 3100 | 9 | 18 |
| 4 | 12.7*76.2(3"*1/2") | 2997*2515 | 80*80*2.5 | 3800 | 11 | 22 |
| 4 | 12.7*76.2(3"*1/2") | 3302*2515 | 80*80*2.5 | 4200 | 12 | 24 |
| 4 | 12.7*76.2(3"*1/2") | 3607*2515 | 100*60*3 | 4500 | 13 | 26 |
| 4 | 12.7*76.2(3"*1/2") | 3607*2515 | 100*100*3 | 4500 | 13 | 26 |
Specification of Mesh, Panels and Posts for 358 Maximum Security System
| MESH | PANELS | POST | ||||
| Wire/Rod Diameter | Opening | Height*Width | Section | O/A length | Total number of fixings | |
| mm | mm | mm | mm | mm | Inters-1 Clamp bar | Comers-2 Clamp bar |
| 4 | 12.7*76.2(3"*1/2") | 4204*2515 | 100*100*4 | 5200 | 15 | 30 |
| 4 | 12.7*76.2(3"*1/2") | 4496*2515 | 100*100*5 | 5500 | 16 | 32 |
| 4 | 12.7*76.2(3"*1/2") | 5207*2515 | 120*120*5 | 6200 | 18 | 36 |

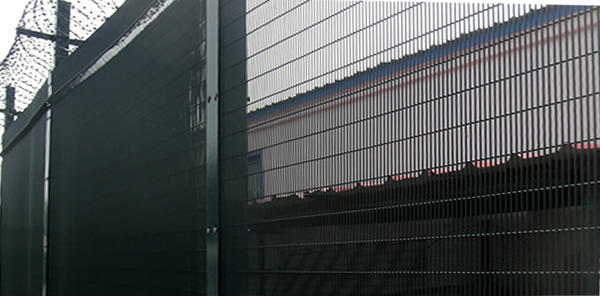

Framed Weld Mesh Panels Heavy Galvanized Zinc Plated with Concertina Razor Wire Toppings
Security Fence Tops
Topping for security can be barbed wire ( galvanized or pvc coated); razor wire tapes (concertina); blade razor spikes.

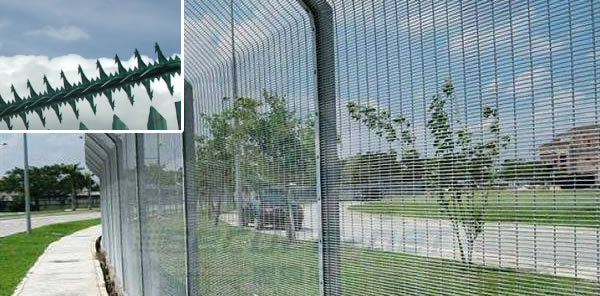

Stainless Steel Blade Anti-climb High Security Razor Spike makes ideal tops for 358 mesh panels and other weld mesh panels. The SS razor spike is 6cm or custom size high and extremely sharp consisting of numerous formed triangular blade spikes.
The strength of the stainless steel allows slightly thinner spike while resulting in sharper edges. It can strengthen and upgrade the security rating of metal steel fences by attaching it to the top rail and posts.
SS Razor Spike of
3CR12 Grade stainless steel, with extremely sharp edges, anti climbing blade.
