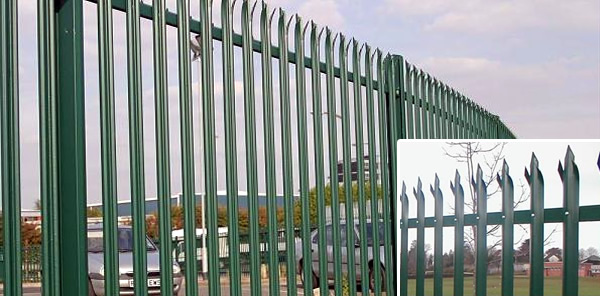

Steel Palisade Fence of W, D and Angle Iron Profile, for Perimeter Security
Palisade fence is designed to deter general attack from all types and conditions of intrusion. The pales are made of hot formed and cold rolled steel belts. These panels offer both strength and rigidity combined with a long life span.
This type of steel fence is normally produced with three types of pales, "W" profile, "D" profile and angle iron. The steel palisade can be used with anti climbing fence spikes for higher level security barrier system.
Palisade Panel Railings and Posts
Anti-thief High Security Steel Palisade with Spike, d profile, for telecommunication tower security, powder coating finish
Material
Steel palisade fence is manufactured with galvanized or PVC coated Steel bar welded together.
Finishes: Galvanized and color coated in various colors to blend with the environment. Powder coating material can be plastic / pvc, polyester or epoxy coating or bitumen coating.
Pales-"W" Section Palisade Fence
Most useful vertical type of pales for palisade fencing, first choice pales .
Width |
Thickness |
Surface Treatment |
Head |
Height |
68mm |
2.0mm |
Galvanized and |
Single point |
1200mm---3000mm |
Pales-"D" section
Compared with "W" profile pales, "D" profile costs less.
Width |
Thickness |
Surface Treatment |
Head |
Height |
60mm |
2.0mm |
Galvanized and |
Single point |
1200mm---3000mm |
Pale-Angle Iron
Its cost is similar with "D" profile, but its structure is simpler than "D" profile.
Width |
Thickness |
Surface Treatment |
Head |
Height |
40x40 |
2.0mm |
Galvanized and |
Single point |
1200mm---3000mm |
Post for Steel Palisade - IPE Type
A connection pipe between the fence panels.
Size |
Thickness |
Surface Treatment |
Head |
Height |
100x55mm |
3.5mm |
Galvanized and |
Cut sharp |
On the fence |
Rail- Angle Iron
It connects between pales and IPE post, which make the fence a whole panel.
Size |
Thickness |
Surface Treatment |
Holes |
Length |
50x50 |
5.0mm |
Galvanized and |
With19 holes drilled |
2710mm |
Palisade fences are supplied in kit form, the systems are composed of palisate pales, palisate rails, fence post and fence fittings including fish plates, post clamps, bolts and nuts.
Fencing System Components
| Components | Type | Number per Panel |
| Galv. or Coated Steel Post | I post, C post or square post | 17 |
| Galv. or Coated Steel Rail | Angle rail | 1 |
| Galv. or Coated Pale | W type,D type or angle rail | 2 or 3, varies according to the fence height |
| Fittings | Finish pale | 2 |
| Bolts & nuts | 38 |
Anti-climb Security Spikes for Palisade Fence and Gates
Why Razor Spikes? The system which can be rapidly installed to existing structures and provide maximum security with ease. The anti climb spike lengths come in 1.45 metre & 1.8 metre, thickness:0.8mm-3mm, length of per piece: 50cm, 64cm, 100cm. Custom cut length can be provided according to fence panels length and on site requirement of the installations.
Adhesive Wall Spike Strips, on top rail of STEEL PERIMETER fence
